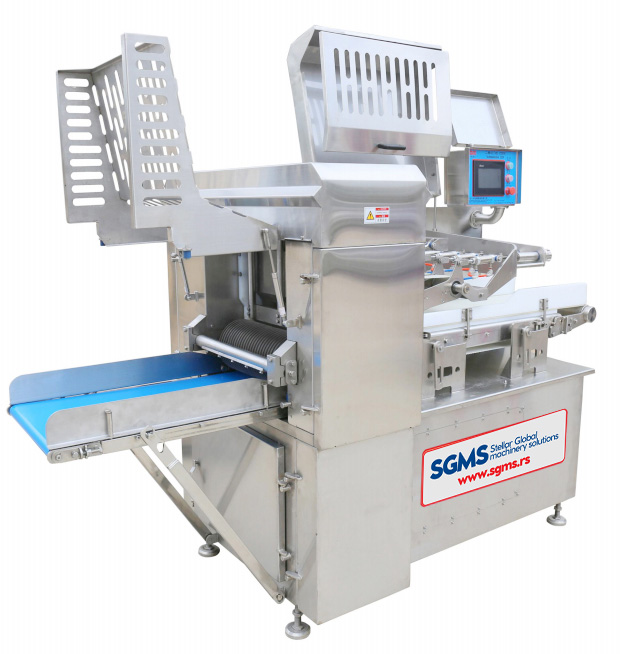

2D Meat Dicer

Introduction：
Four independent upper pressing conveyor belts, each belt pressing force adopts mechanical and pneumatic cooperation.
PLC touch screen intelligent control can effectively save labor. Two feeding modes optional: step and continuous feeding with adjustable speed.
The feeding structure adopts the upper and lower pressing feeding belts driven by servo drive. The feeding speed is precise and can be adjusted arbitrarily from 5-100mm, which realizes continuous feeding and cutting. The front end can be equipped with a slicer with a conveying structure. To the feeding belt of the machine, it can realize automatic production.
Performance:
International advanced cutting motion mode – Four-guide column linear positioning motion cutting structure，After slicing into strips, the strips is cutter into cubes by the round cutter.
Advanced feeding structure – the upper and lower conveyor belts convey materials, and the contact surface between the upper pressing belt and the material is always kept parallel。
Flexible disassembly – the feeding plate can be disassembled and cleaned directly by hand
Cleaning method – direct cleaning with water gun
Safety Device – Inductive Automatic Circuit Break
Use – Frozen meat strips, cubes processing.
Control and Operation:
This machine adopts frequency converter to control the drive motor;
PLC touch screen
